The FGF receptors typically contain three Ig-like binding domains (with domains D2 and D3 being most involved in FGF-FGF receptor binding interactions), a short transmembrane spanning domain and a cytoplasmic component that possesses tyrosine kinase activity. Between receptor protein Domains D1 and D2 is a short span of acidic residues called the "acid box." A cartoon schematic of FGF Receptor Domains is shown below:
FGF Receptor Domains.
The D1 and the linker region between D1-D2 have much sequence variability, multiple splice variants, are structurally disordered (even in the presence of bound FGF ligand), and are considered not necessary for ligand binding ( FGF binds to FGFR even in the total absence of protein receptor domain D1). It is hypothesized that the "acid box" can participate in the regulation of FGF binding to FGFR's in that the multiple acidic sites of the "acid box" can mimic the negative potential surface of heparin-like compounds and thus, bind at the heparin-binding sites located on the surface of the D2 region of the FGF receptor without initiating a biological response (an auto-inhibition mechanism). A cartoon of this inhibition is shown below:
"Acid Box" Mediated Auto-Inhibition

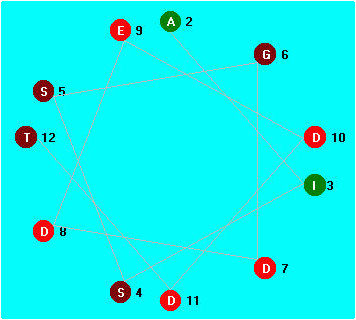

For this auto-inhibition to occur, the "acid box" should resemble the 3-dimensional charge distribution found in heparin. The amino acid sequence in the "acid box" region of the human FGFR 2 receptor has the following sequence. DAISSGDDEDDTEGAED. This sequence is predicted (Chou-Fasman) to assume a helical conformation. The snake representation and helical wheel for this "acid box" sequence are shown below:

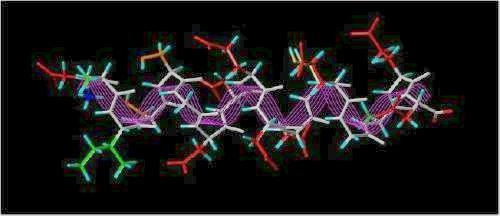

The SYBYL stick representation of this sequence represented as a helix is shown below:
The "Acid Box"
(colors: Hydrophobic = green; Hydrophilic = orange; Acidic = red; Hydrogen atoms = cyan; white backbone traced with magenta lines)
The distribution of negative charges (from sulfate and carboxylate groups) in Heparin form a negative charge potential that lines the ridge of the Heparin helix such that a negative center (red color) is found every 17-19 angstroms The surface potential of the "acid box" sequence and Heparin are shown below:
"Acid Box" |
Heparin |

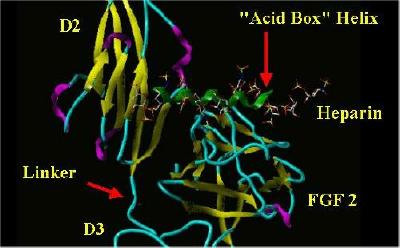

The "acid Box" helix was manually placed in the same space as Heparin in a monomer from the FGF 2-FGFR 1-Heparin 2;2;2 complex. The SYBYL rendering of this is shown below:
"Acid Box" In Heparin's Space
"Acid Box" superimposed over Heparin |
"Alpha Box" helix Only |

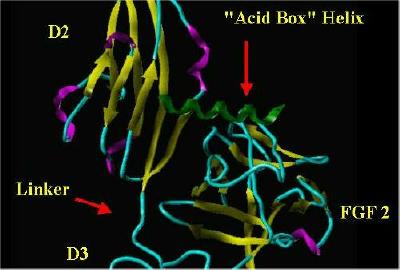

Another angle of the same situation:
"Acid Box" superimposed over Heparin |
"Alpha Box" helix Only |
Since the "acid box" can fit into the space surrounding the heparin-binding surface of the D2 Domain for the FGF receptor, it seems reasonable that the "acid box" could restrict access to the D2 Domain by either incoming FGF and/or Heparin molecules.
The real-time visualization using KiNG of the structures on this site requires a java-enabled (JRE from Java) browser.
Possible Icons to the left of molecular model image on the download page
Java Not Activated | Java Not Activated | Java Functional |
Blank Area
or message: Image requires a Java enabled browser
|
||
KiNG Inactive | KiNG Inactive | KiNG Full Functional |
A single click on the KiNG logo will launch the appropriate kinemage.
Kinemage 1: The Acid Box

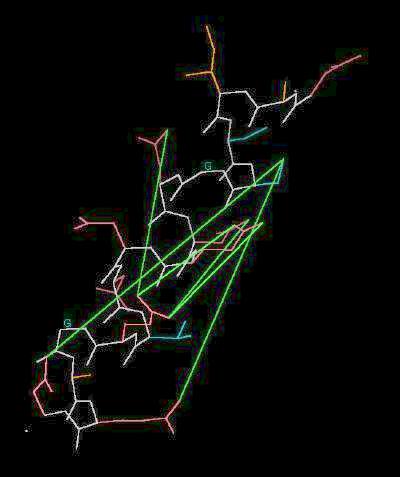

Selected distances between negative sites are indicated with green lines
28 K |
|
Click On KiNG to see |
"Acid Box" |
Kinemage 2: Heparin

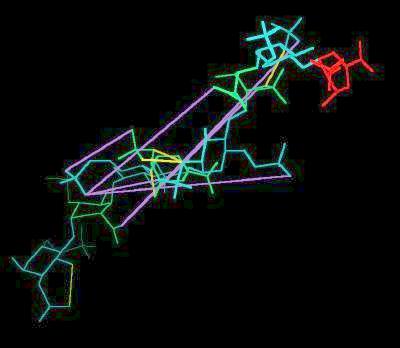

Selected distances between negative sites are indicated with lilac lines
16 K |
|
Click On KiNG to see |
Heparin |
Since the distribution of negative charges (from sulfate and carboxylate groups) in heparin is similar to charge distribution in the "acid box," it is reasonable to assume the "acid box" sequence can mimic heparin.
Sequence: (FGFR 2 "Acid Box")
DAISSGDDEDDTEGAED
Sources:
Heparin was extracted (using SYBYL) from Brookhaven Database File 1FQ9 (Chain E). The "Acid Box" was built in SYBYL and energy minimized (SYBYL Minimization Energy = -187.760 kcal/mole) using the Kollman All-Atom force field with charge considerations. The surface potentials were generated using the Windows version of AccelyrSys Viewer Lite.
