beta Sheet Nomenclature

FGF molecules share a common protein architecture: the beta trefoil (three-fold repeat of a four-stranded sheet assembly without extended alpha helix strands possessing a pseudo three-fold axis of symmetry) motif. FGF ligands typically contain 12 beta sheets arranged in 3 groups of 4 strands. The C and N terminal sheets are adjacent which serves to close and stabilize the overall structure. Heparin binding to FGF stabilizes this junction and may play a key role in regulation of this molecule. The beta sheets are numbered 1 through 12, beginning at the N terminal of the sequence. The base of the trefoil (sheets 1, 4, 5, 8, 9, & 12) form a beta barrel motif. This architecture for FGF 2 is shown in Kinemage 1.

Since Telokin has a 7 anti-parallel beta strand architecture common to immunoglobulins, it serves as a reference template for the FGFR ligand binding domains. The Telokin sheets are arranged into two primary parallel groups (of 4 and 3 strands) whose apparent wrapping around a central core has been described as a "beta barrel." The 7 sheets of Telokin are described numerically in Kinemage 2  and labeled alphabetically from A-G  in Kinemage 3. The Telokin architecture is summarized at PDB Sum.

The FGFR beta sheets have been mapped onto a Telokin template. This scheme, using the ligand binding domains D2 and D3 from the FGF 2-FGFR 1 dimer (Brookhaven 1CVS),  is depicted numerically in Kinemage 4 and alphabetically in Kinemage 5.

Finally, the ligand binding domain is split into three defined immunoglobulin-like regions: domains D2, the Linker (between D2 and D3) and domain D3. These are shown in Kinemage 6.

The Kinemages:

The real-time visualization using KiNG of the structures on this site requires a java-enabled (JRE from Java) browser.

Possible Icons to the left of molecular model image on the download page

Java Not Activated	Java Not Activated	Java Functional
	Blank Area or message: Image requires a Java enabled browser
KiNG Inactive	KiNG Inactive	KiNG Full Functional

A single click on the KiNG logo will launch the appropriate kinemage.

  Kinemage 1: The FGF beta Sheets

View 1 the sheets identified
View 2 the molecule rotated to highlight the three distinctive folds of the trefoil architecture. This arrangement is maintained by the fold (in red) in which the two beta sheets 1 (N-terminal) and 12 (C-terminal) bring together the loose terminal ends of the protein sequence. The base of the FGF trefoil (sheets 1,4,5,8,9,& 12) form a beta barrel motif.

Image requires a Java enabled browser 298 K
Click on KiNG to see	FGF Sheets

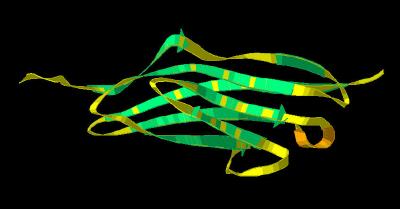

 Kinemage 2:  Telokin Template (Numerical)

View 1 identifies the 7 anti-parallel beta sheets as numbered sheets
View 2 an arbitrary side view
View 3 an arbitrary top view
View 4 the "vertical" view

Image requires a Java enabled browser 188 K
Click on KiNG to see	Telokin Sheets (Numerical)

Kinemage 3:  Telokin Template (Alphabetical)

Telokin is a classic representation of the immunoglobin-like "beta barrel" architecture.

View 1 identifies the 7 anti-parallel beta sheets as English alphabetical characters
View 2 an arbitrary side view
View 3 an arbitrary top view
View 4 the "vertical" view

Image requires a Java enabled browser 187 K
Click on KiNG to see	Telokin Sheets (Alphabetical)

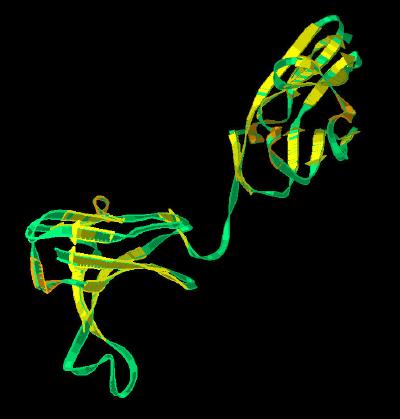

  Kinemage 4: FGFR Ligand Binding Domain beta Sheets (Numerical)

The secondary structure  of domains D2-D3 of the FGFR ligand binding domain are mapped onto a Telokin template using numerical designations.

View 1 FGFR 1 ligand binding domain
View 2 the "vertical" view

Image requires a Java enabled browser 395 K
Click on KiNG to see	FGFR Sheets (Numerical)

Kinemage 5: FGFR Ligand Binding Domains (Alphabetical)

The secondary structure  of domains D2-D3 of the FGFR ligand binding domain are mapped onto a Telokin template using alphabetical designations.

View 1 FGFR 1 ligand binding domain
View 2 the "vertical" view

Image requires a Java enabled browser 394 K
Click on KiNG to see	FGFR Sheets (Alphabetical)

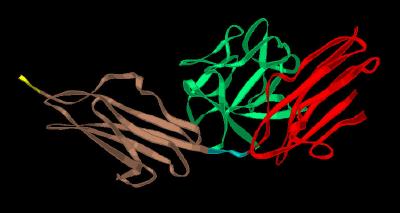

Kinemage 6: FGFR Ligand Binding Domains

This is a simple schematic to highlight the D2, linker and D3 Domains of FGFR's.

View 1 FGF-FGFR Complex
View 2 "Vertical" view often seen in journals

Image requires a Java enabled browser 416 K
Click on KiNG to see	FGFR Domains

Sources:

FGF 2 Coordinates were taken from Brookhaven Database file 1BFF. Telokin coordinates were taken from Brookhaven Database file 1FHG. FGFR coordinates were taken from Brookhaven Database file 1CVS.
