Type 4 Home Problem
Problems that are under-specified and require the student to consult other information sources.

PART 3 - Type 4 Solution - Polymath

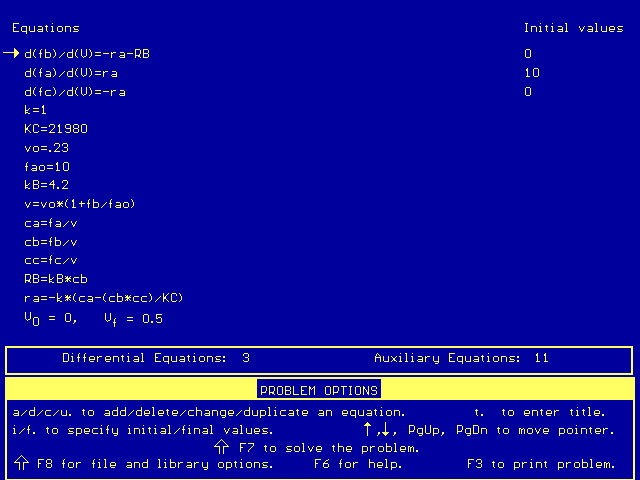

Here is the list of equations:

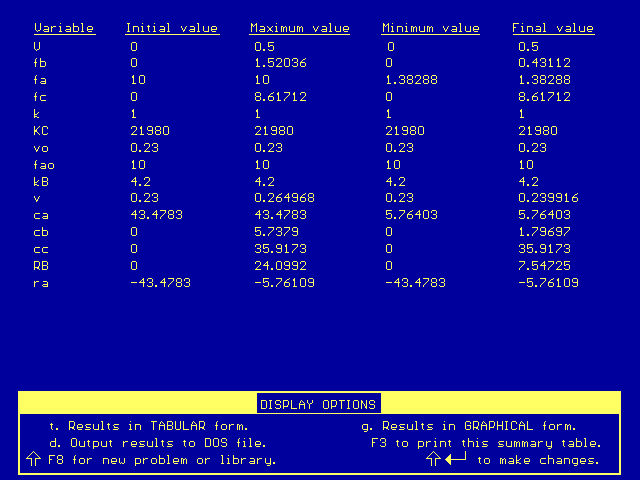

This is the Polymath output file:

We will use this file to calculate the conversion. The conversion (X) equals the difference between the initial and final flow rates of A divided by the initial flow rate:

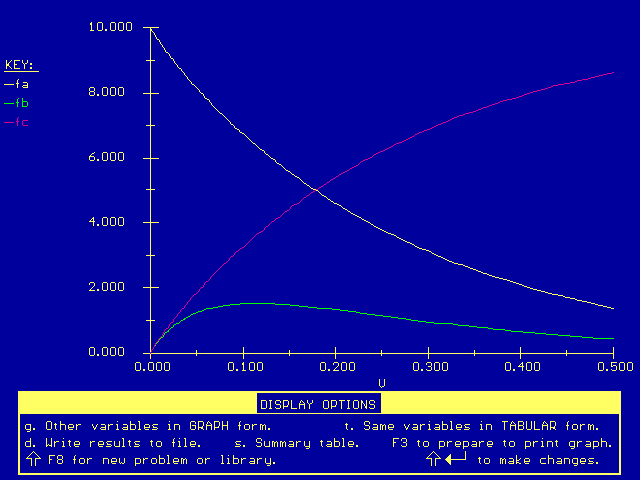

Finally, we plot the flow rates of the components along the reactor:
